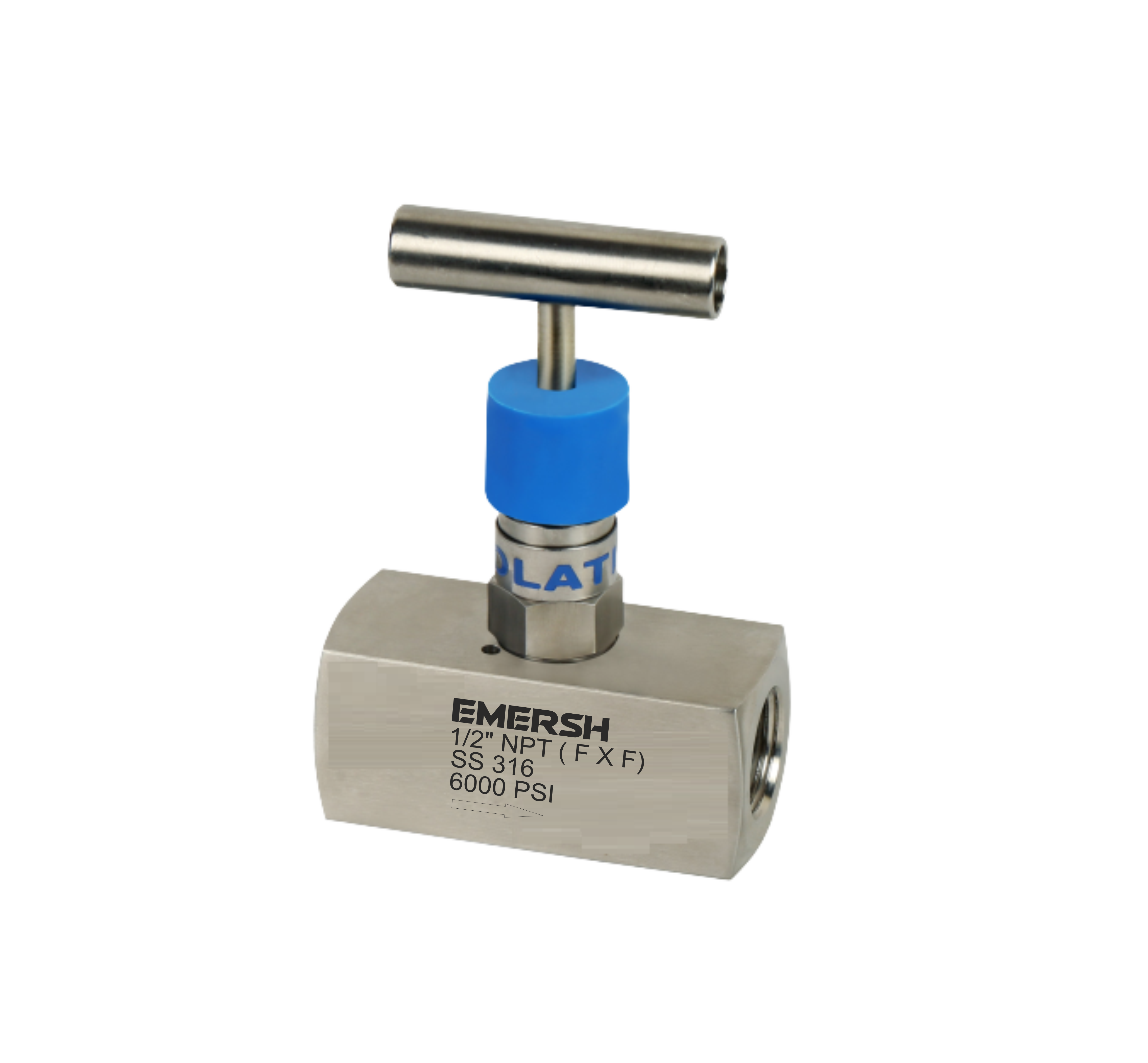

Needle Valves Screwed Bonnet (Female x Female)

Features:

Needle Valves are available in SS304, SS304L, SS 316, SS316L Materials in bar stock construction. Variety of end connections: Male & Female NPT, BSPP, BSPT, ISO tapered pipe ends. Maximum working pressure up to 10000 psig (690 bar). Size: 1/4" to 1" PTFE standard gland packing, Graphoil packing for high temperature. Max. temperature up to 450°C (842°F). NACE certification available upon request. Heat code traceability. 100% factory tested.
